PLC control glass double side edge machine production line

FOB Reference Price:Get Latest Price
$85,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JFD-series L
Max. Glass Size:
2500mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass Edging Machine
Production Capacity:
0.5-8m/min
Power(W):
26-65KW
Certification:
CE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Global Jinfeng
Voltage:
220v/380v/415v
Dimension(L*W*H):
different size
Weight:
different weight
line shape:
L shape
Glass parallel error:
±0.2mm(1mx1m)
Max grinding bottom:
3mm
Diagonal error:
±0.5mm(1m*1m)
Total Qty of the line:
3 machine
Glass thickness:
3-25mm
Pneumatic operating pressure:
0.4-0.8mpa
glass chamfer width:
1-3mm
dubbling width:
0-3mm
Supply Ability
Supply Ability:
30 Set/Sets per Year depands on client demands
Packaging & Delivery
Packaging Details
plastic paper or strong package or according to customer's requirement
Port
Shenzhen/Guangzhou/Shunde
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated

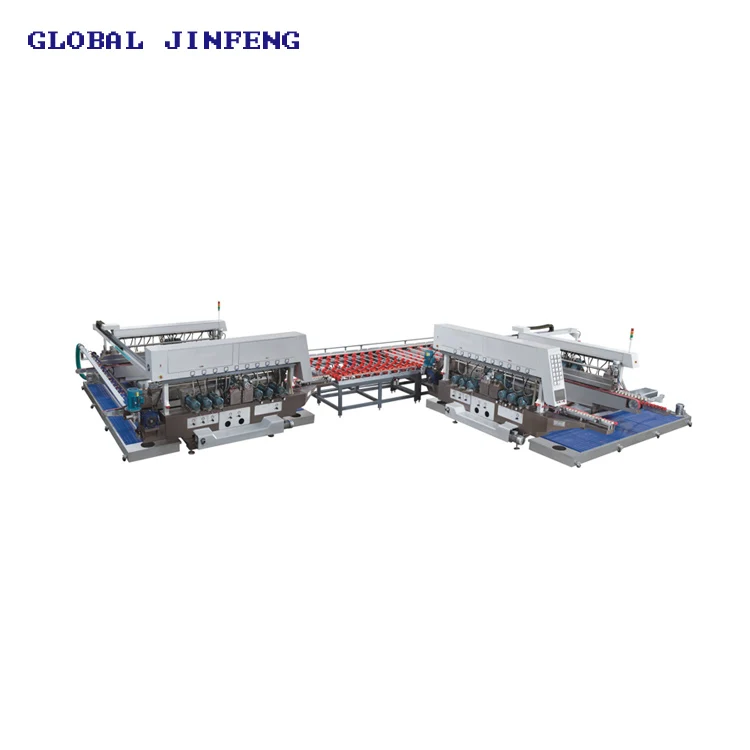

JFD series L Automatic bilateral mill glass production line edging machine



*******************************************************



This production line consists of two bilateral straight edge grding machine and one L transformation,one-time grinding four sides.



* simple structure and reliable

* fast conversion glass

* save space and workers

* high production efficiency





Technical Parameters

Number grinding motor4/8/10/12/16/18/20/22/26
Glass chamfer width1-3mm
Glass parallel error ±0.2mm/m
Dubbling width0-3mm
Glass drive speed0.5-8m/min
Diagonal error ±0.5mm
Glass thickness3-25mm
Glass chamfer width error ±0.3mm(1*1m)
Maximum grinding5mm(single side)
Pneumatic operating pressure0.4-0.8mpa
Total power26-65kw









1.sample

we can make the sample for every client as your requirement.



2.technology

 we had concentrate on glass machine for 10 years at least,we can  unlimited support you if you need.



3. custom-made

we can make as the customer need.our target is -- satisfy all the guests.

4.certification
we had passed CE certificte,also can supply other certifications if you need.

We are a professional glass machinery company for glass machine manufacturer and sales! We had exported to more than 10 counrties and areas like USA,Russia,South Afria,India all over the world!
    ♥ We welcome your inquiry,we will try our best quote the best price to you!

Technical Assistant:Charlie Yang

Mobile/Whatsapp/WeChat:0086 18138398872

Skype:globaljinfeng

Face book:Charlie Yang

Any questions of our machines,please contact me freely.
