JFD-1008 8 motors glass double pencil round edge working machinery factory in China

FOB Reference Price:Get Latest Price
$19,000.00 - $25,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
JFD-1008
Max. Glass Size:
2500mm
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 38 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Machine Type:
Glass Edging Machine, Glass Edging Machine
Production Capacity:
0.5~8m/min
Power(W):
22kw
Certification:
CE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Global Jinfeng
Voltage:
380V/415V/220V
Dimension(L*W*H):
3300x2750x1900mm
Weight:
3500kg
Place of origin:
Fo Shan China(Mainland)
Number grinding:
8 pieces
Glass thickness:
3-12mm
Glass chamfer width:
0.5-3mm
glass chamfer with error:
±0.2mm/m
glass parallel error:
±0.2mm/m
glass diagonal error:
±0.5mm/ ㎡
glass drive speed:
0.5-8m/min
pneumatic operating pressure:
0.6-0.8mpa
Supply Ability
Supply Ability:
20 Set/Sets per Month 200 sets per year
Packaging & Delivery
Packaging Details
wooden package or other strong package and can last for long distance way delivery
Port
Shenzhen/Shunde/Guangzhou
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 38 To be negotiated
Product Description

Product Application

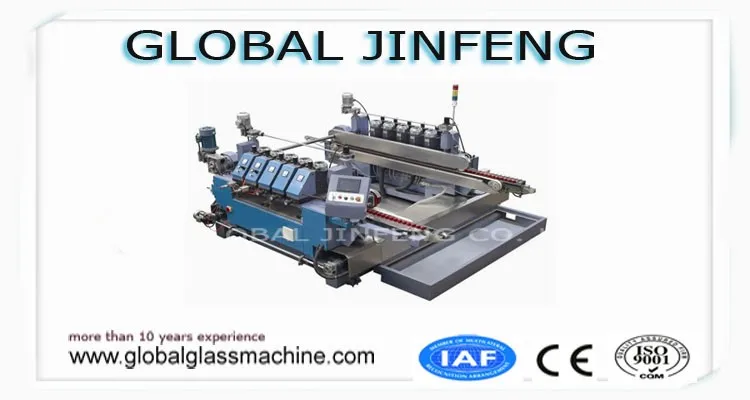

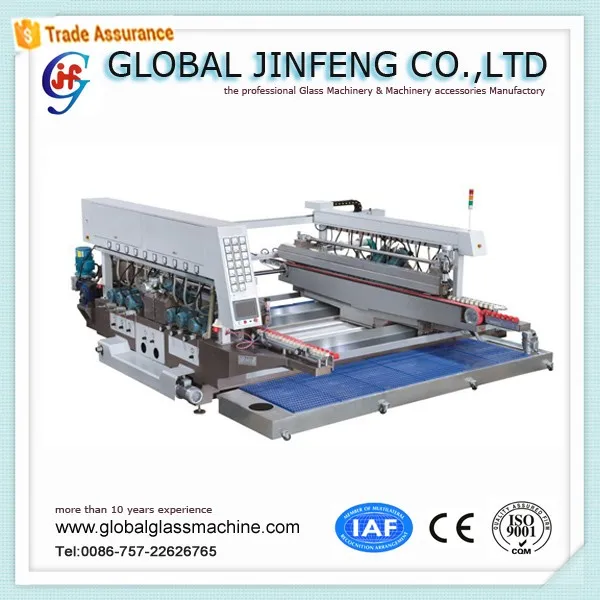

JFD-1008 8 motors glass double pencil round edge working machinery factory in China

 The glass round double edge machine it  is 8 grinding heads  design configuration 38mm wide conveyor belt, can grinding for the round and the pencil edge  ,the effect is very stable and suitable for processing all types of high -end architectural glass products,glass and electrical.

SPECIFICATIONS FOR 1O MOTORS DOUBLE EDGE POLISHING MACHINE

Engine
Engine KW
Kw
2.2
The Current
A
4.81
The Speed
R/Min
2815

Main Machine specification
Main Speed
M/Min
0.5-8
Min glass size
mm
250
Max. glass size
mm
2500

The machine  details
 weight
KG
4000
 Power
KW
 26.4
Package Size
  mm


Main Features

1.Glass thickness: 3mm-25mm
2.Speed: 0.5-5m/min
3.Max width of glass: 2500mm
4.Min size of glass: 250mm
5.Parallel error: ≤0.2mm/m
6.Diagonal error: ≤0.5mm/m
7.Power: 24.6KW
8.Max cutting amount of single side:5mm
9.Height of working table: 900mm±20mm
10.Weight:3800KG
11.10Motors
12.380V/50HZ/3P
13.Free parts:2 set waterproof cover,2 pcs BK wheels,2pcs water nozzles,4pcs support wheel,2pcs melting core,2pcs Ammeter, 1 pcs Emergency switch,1pcs AC contactor,1pcs thermal relay, 2pcs delivery belt

Certifications
Detailed Images

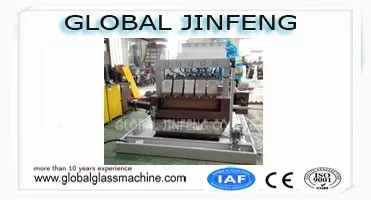

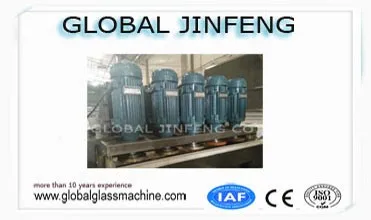

Glass Machine  Motors

Name: Motors

Brand:  ABB or Mingliang

Original: Germany or china made

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits

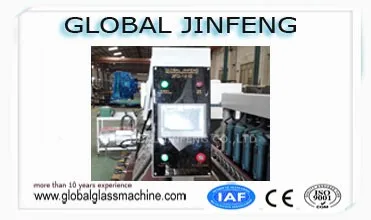

The PLC Main Features

Name: PLC control
Brand:  simens or china famous brand
Original: Germany or china

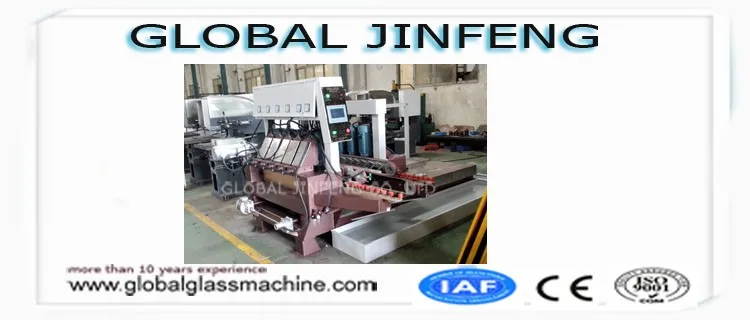

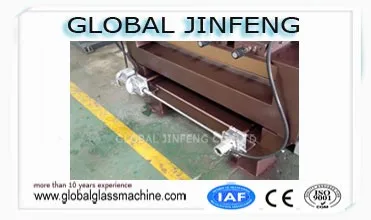

Machine Parts

Name: The Bottom Steel
Brand: china made
Original: China


Main Features

Name: The water tank  stainless
Brand: China
Original:China


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

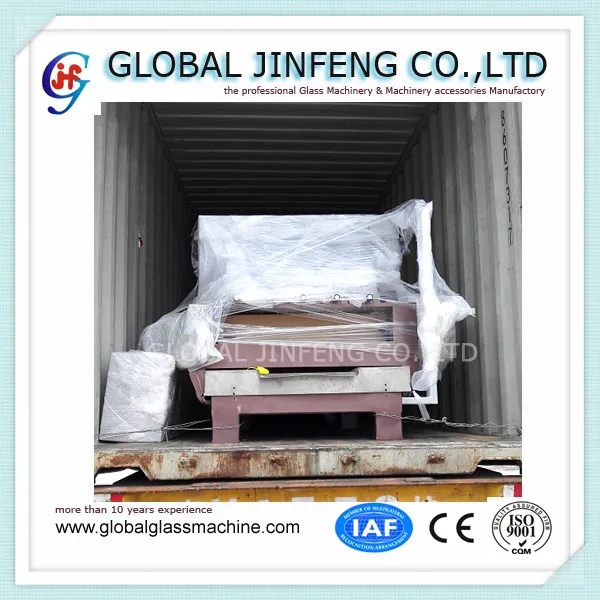

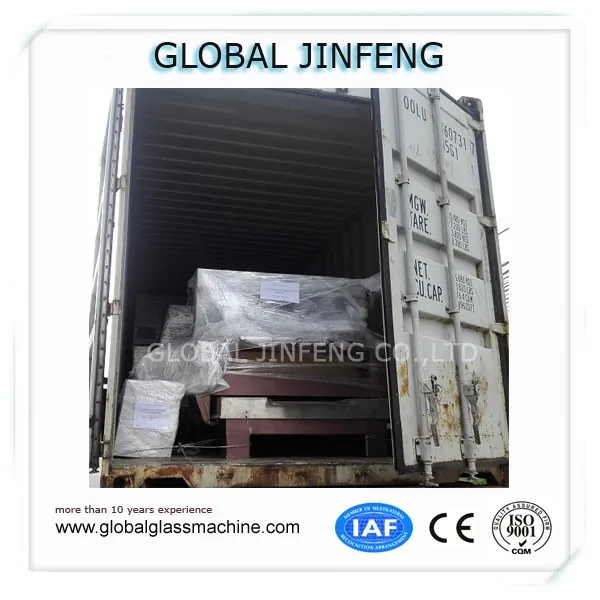

Packing & Delivery
Packaging
Size
3500 (L) * 3000(W) *1800 (H)
Weight
3.6  T



Packaging Details
 The plastic paper with wire wraped
Packaging
Size
Weight



Packaging Details
