L-type Automatically glass double edger line for building glass working

FOB Reference Price:Get Latest Price
$89,000.00 - $105,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JFDR
Max. Glass Size:
2000mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
one year
Machine Type:
Glass Edging Machine
Production Capacity:
0.5-8m/min
Power(W):
40KW
Certification:
CE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant, Construction works
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Global Jinfeng
Voltage:
220V/380V/415V
Dimension(L*W*H):
9000x3000x2000mm
Weight:
10000kg
Model:
Glass double edger line
Shape:
L-type
Glass parallel error:
±0.2mm(1mx1m)
Max grinding bottom:
3mm
Diagonal error:
±0.5mm(1m*1m)
Total Qty of the line:
3 machine
Glass thickness:
3-25mm
Pneumatic operating pressure:
0.4-0.8mpa
glass chamfer width:
1-3mm
dubbling width:
0-3mm
Supply Ability
Supply Ability:
10 Set/Sets per Month 100 sets each year
Packaging & Delivery
Packaging Details
plastic paper or strong package or according to customer's requirement
Port
shenzhen/guangzhou/shunde
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

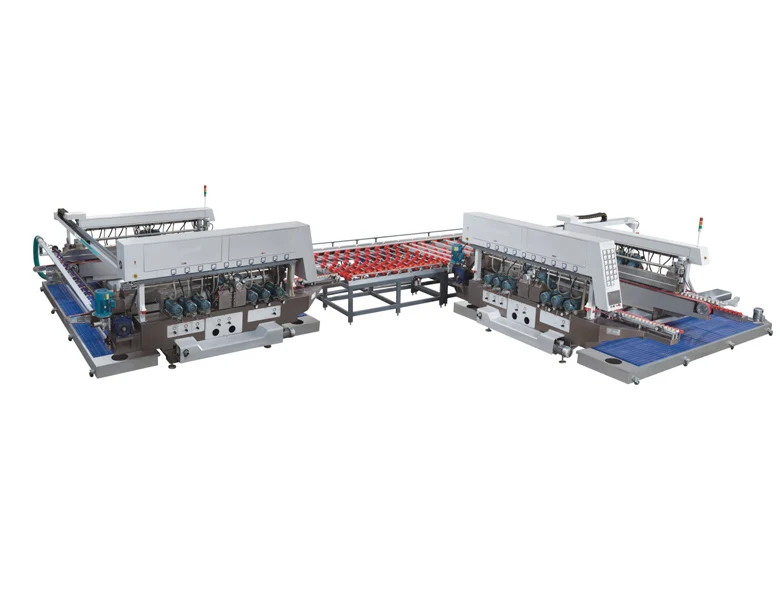

L-type Automatically glass double edger line for building glass working

*******************************************************



This production line consists of two bilateral straight edge grding machine and one L transformation,one-time grinding four sides.



* simple structure and reliable

* save space and workers

* high production efficiency





Technical Parameters

Number grinding motor4/8/10/12/16/18/20/22/26
Min-max glass size250-6000mm
Glass chamfer width1-3mm
Glass parallel error±0.2mm/m
Dubbling width0-3mm
Glass drive speed0.5-8m/min
Diagonal error±0.5mm
Glass thickness3-25mm
Glass chamfer width error±0.3mm(1*1m)
Maximum grinding5mm(single side)
Pneumatic operating pressure0.4-0.8mpa
Total power40kw









1.sample

we can make the sample for every client as your requirement.



2.technology

 we had concentrate on glass machine for 10 years at least,we can  unlimited support you if you need.



3. custom-made

we can make as the customer need.our target is -- satisfy all the guests.

4.certification
we had passed CE certificte,also can supply other certifications if you need.

  We are a professional glass machinery company for glass machine manufacturer and sales! We had exported to more than 10 countries and areas like USA,Russia,South Africa,India all over the world!
