JFD-1008 8 Motors glass Round double edge grinding and polishing machine

FOB Reference Price:Get Latest Price
$20,000.00 - $28,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JFD-1008
Max. Glass Size:
1000mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass Edging Machine, Glass Edging Machine
Production Capacity:
0.5~8m/min
Power(W):
22kw
Certification:
CE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Hotels, Building Material Shops, Construction works
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Global Jinfeng
Voltage:
380V/415V/220V
Dimension(L*W*H):
3300*1850*1900mm
Weight:
45000
Key Selling Points:
High Productivity
Place of origin:
Fo Shan China(Mainland)
Number grinding:
8 pieces
Glass thickness:
3-12mm
Glass chamfer width:
0.5-3mm
glass chamfer with error:
±0.2mm/m
glass parallel error:
±0.2mm/m
glass diagonal error:
±0.5mm/ ㎡
glass drive speed:
0.5-8m/min
pneumatic operating pressure:
0.6-0.8mpa
Supply Ability
Supply Ability:
15 Piece/Pieces per Month 150 sets per year
Packaging & Delivery
Packaging Details
Plywooden package or other strong package and can last for long distance way delivery
Port
Shenzhen/Shunde/Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Video Description

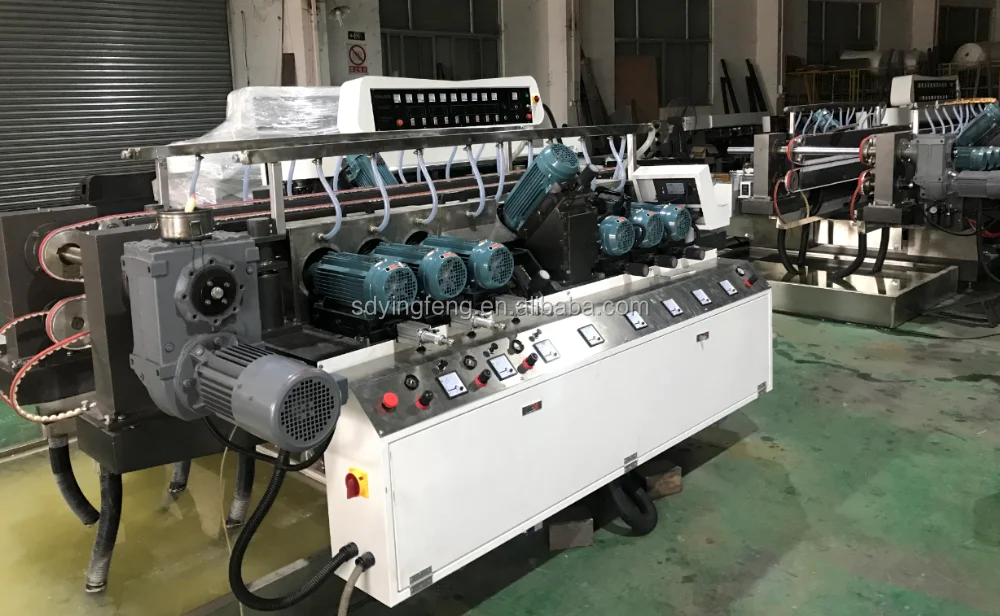

JFD-1008 8 Motors 1500mm glass Round double edge  grinding and polishing machine

**************************************************************************

* JFD Series glass straight line two side glass grinding  machine specialized in grinding parallel double edge Gringding for the huge flat glass.

glass is delivered horizontally,crude grinding,refine grinding and polishing are finished in due order.





Product Description



Processing speed0.5-8m/min
Total power22kw
Grinding number8 pieces
Glass processing thickness3-12mm
Min.processing size50mm
Max.size of processing1000mm







Wrap film or plywood case package according to client require



1.sample

we can make the sample for every client as your requirement.



2.technology

 we had concentrate on glass machine for 10 years at least,we can  unlimited support you if you need.



3. custom-made

we can make as the customer need.our target is -- satisfy all the guests.


4.certification
we had passed CE certificate,also can supply other certifications if you need.




We are a professional glass machinery company for glass machine manufacturer and sales! We had exported to more than 10 counrties and areas like USA,Russia,South Afria,India all over the world!
