Glass Automatic Sandblasting Machine for Sanding Glass

FOB Reference Price:Get Latest Price
$8,500.00 - $9,980.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JFP-2500
Max. Glass Size:
2500x3660mm
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass Sandblasting Machine
Production Capacity:
20-25m2/min
Power(W):
15KW
Certification:
CE
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
GLOBAL JINFENG
Voltage:
220V/380V/415V
Dimension(L*W*H):
6200x1500x3300mm
Weight:
1450kgs
After-sales Service Provided:
Engineers available to service machinery overseas
Model No.:
JFP-2500
Sandblasting speed:
20-25m2/min
Min.Glass size:
200x500mm
Max.Glass size:
2500x3660mm
Total Power:
3.5KW
Pneumatic operating pressure:
0.6-0.8Mpa
Sandblasting dimension:
6200x1500x3300mm
Automatic gun:
3PCS
Glass thickness:
3-50mm
Supply Ability
Supply Ability:
30 Set/Sets per Month 300sets/year
Packaging & Delivery
Packaging Details
PE film with steel support packing package for glass sandblasting machine delivery
Port
SHUNDE/SHENZHEN/GUANGZHOU
Product Description

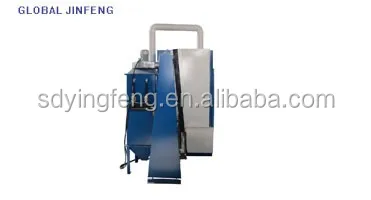

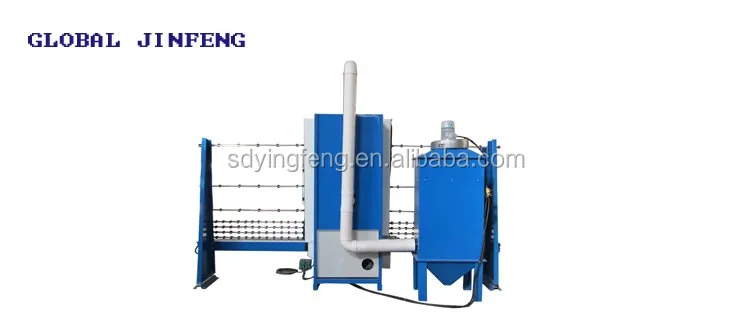

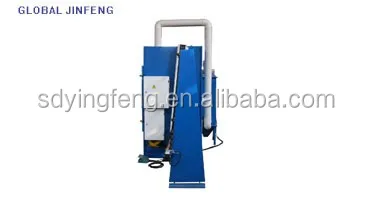

JFP-2500 Glass Automatic Sandblasting Machine for Sanding Glass

JFP Series sandblast machine system is made of touch screen and PLC.It can realize manual and automatic sandblasting function.It is easy for opeartion.Adopt special material for nozzle that can be long life.Automatically dust collection,abopt reverse blowing mode for filter bag dust cleaning.Adopt input and output two conveyor belts that avoid to take the sand out.Low cost for usage and maintenance.

JFP-2500 Automatic Vertical Sandblast Machine for glass Specification
Model No.

JFP-2500
The sandblasting speed
20-25m2/min
Min.Glass size
200x500mm
Max.Glass Size
2500x2500mm
Total Power
15KW
Pneumatic operating pressure
0.6-0.8Mpa
Overall size
7200x2000x3500mm

Main Features

1.Adopt Touch screeen operation,PLC control;
2.Automatic and manual both functions;
3.Adopt special material for nozzle that can be long life;
4.Automatically dust collection,adopt reverse blowing mode for filterbag dust cleaning;
5.Adopt input and output two conveyor belts that avoid to take the sand out;
6.Low cost for usage and maintenance

Detailed Images



Sandblasting gun

The blasting gun can be operated directly after being operated by the PLC system.




Lifting belt

Lifting belt is to control the sandblast belt up and down.


Dust collection
Automatically dust collection,adpot reverse blowing mode for filter bag dust cleaning;Adopt input and output two conveyor belts that avoid to take the sand out.

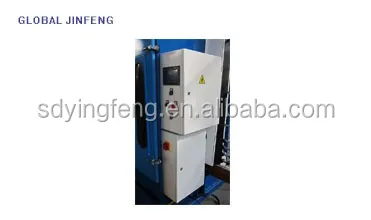

Electric appliance
Support CHNT,ABB,CDQC,Schneider and China brand.


Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas
.


Packing & Delivery
Packaging
Size
3300x1800x2200
Weight
1450kg



Packaging Details
If customer buy many machines, single machine will be packed with wrap film and loaded into a container with metal steel fixed with container .
