JFE-361 10motor Glass beveling grinding and polishing machine with CE

FOB Reference Price:Get Latest Price
$15,300.00 - $26,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JFE-361
Max. Glass Size:
2500mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass Beveling Machine
Production Capacity:
0.5-5m/min
Power(W):
24.5kw
Certification:
CE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , glass factory
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Global Jinfeng
Voltage:
220V/380V/415V
Dimension(L*W*H):
7000x1300x2500mm
Weight:
4500kg, 4500kg
Key Selling Points:
High Productivity
Model:
JFE-361
Glass thickness:
3-19mm
Max .glass size:
2500x2500mm
Min .glass size:
80x80mm
Feeding speed:
0.5-5m/min
Made in:
China
Power:
24.5kw
Land occupation:
7000x1300x2500mm
Main material:
casting iron
Supply Ability
Supply Ability:
30 Set/Sets per Month glass edging machine
Packaging & Delivery
Packaging Details
wrap film ,wood package or according to the customer 's requirement
Port
Shunde /Guangzhou /Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

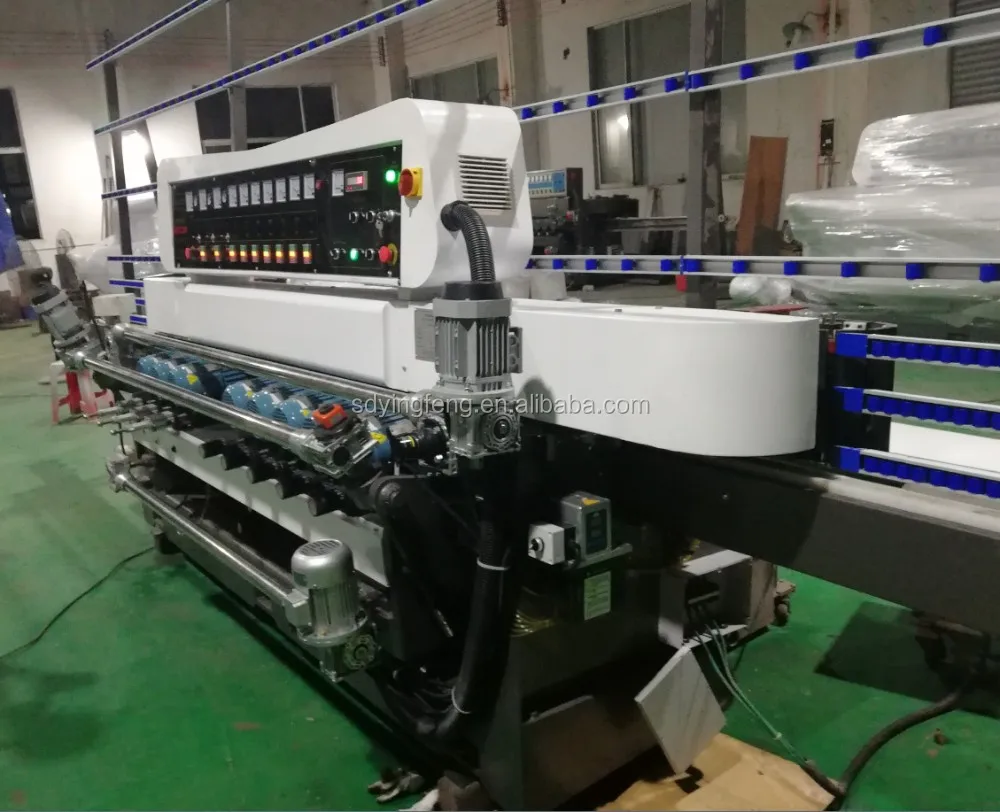

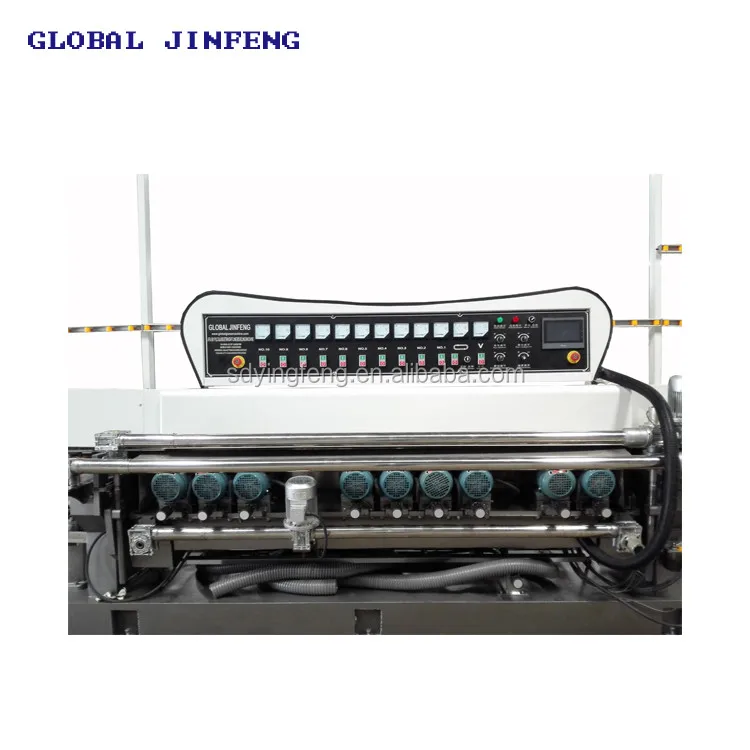

JFE-361 10motor Glass beveling grinding and polishing machine with CE

1.It is suitable for straight line beveling grinding for flat glass of different thickness and sizes with high precision and efficiency.
2.Coarse grinding,fine grinding and polishing can be completed in one time,ensuring the accuracy and polishing brightness achieving to the mirror effect .
3.The base,beam, swing frame, upright column and grinding heads are of casting materials (annealed to prevent deformation),which can bear large loads and has stable performance.
4.The gibs are of 40 Cr forged materials,whose surfaces is much more durable with high-frequency quenching treatment after fine grinding.(annealed to prevent deformation).They have extreme resistance to abrasion and deformation,as well as the best shock absorbing properities.

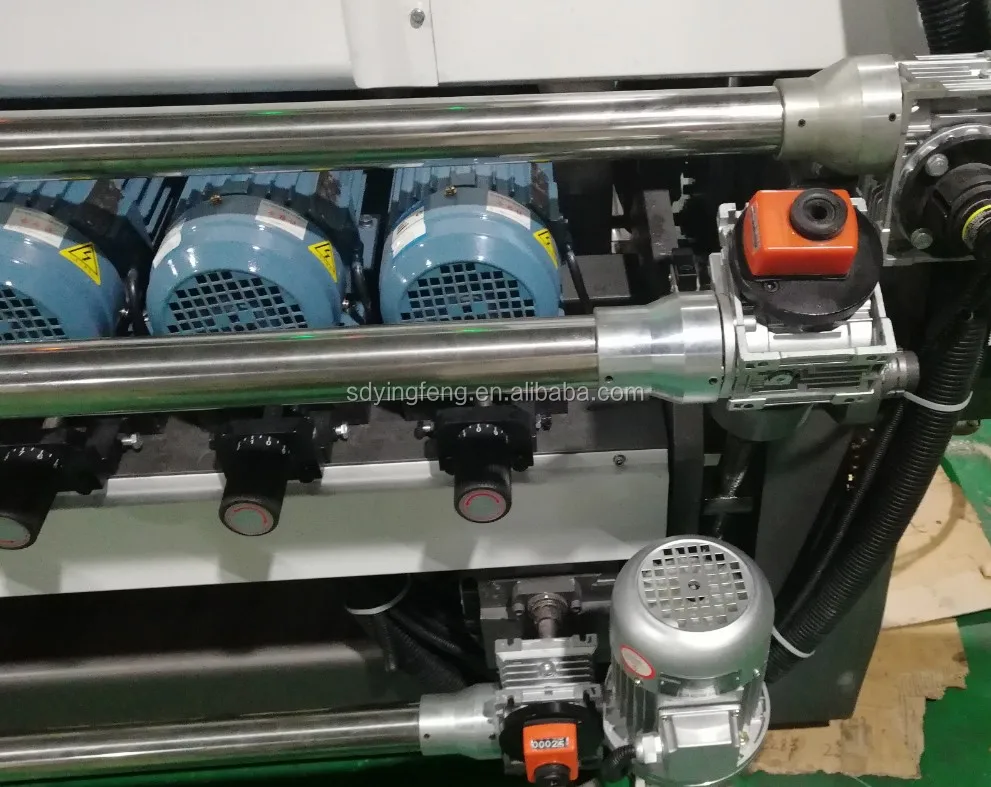

5.The beveling grinding head motor is from the international brand:ABB,Electric is from Schneider,and it also has aluminum alloy scaffolding line and synchronous belt transmission .

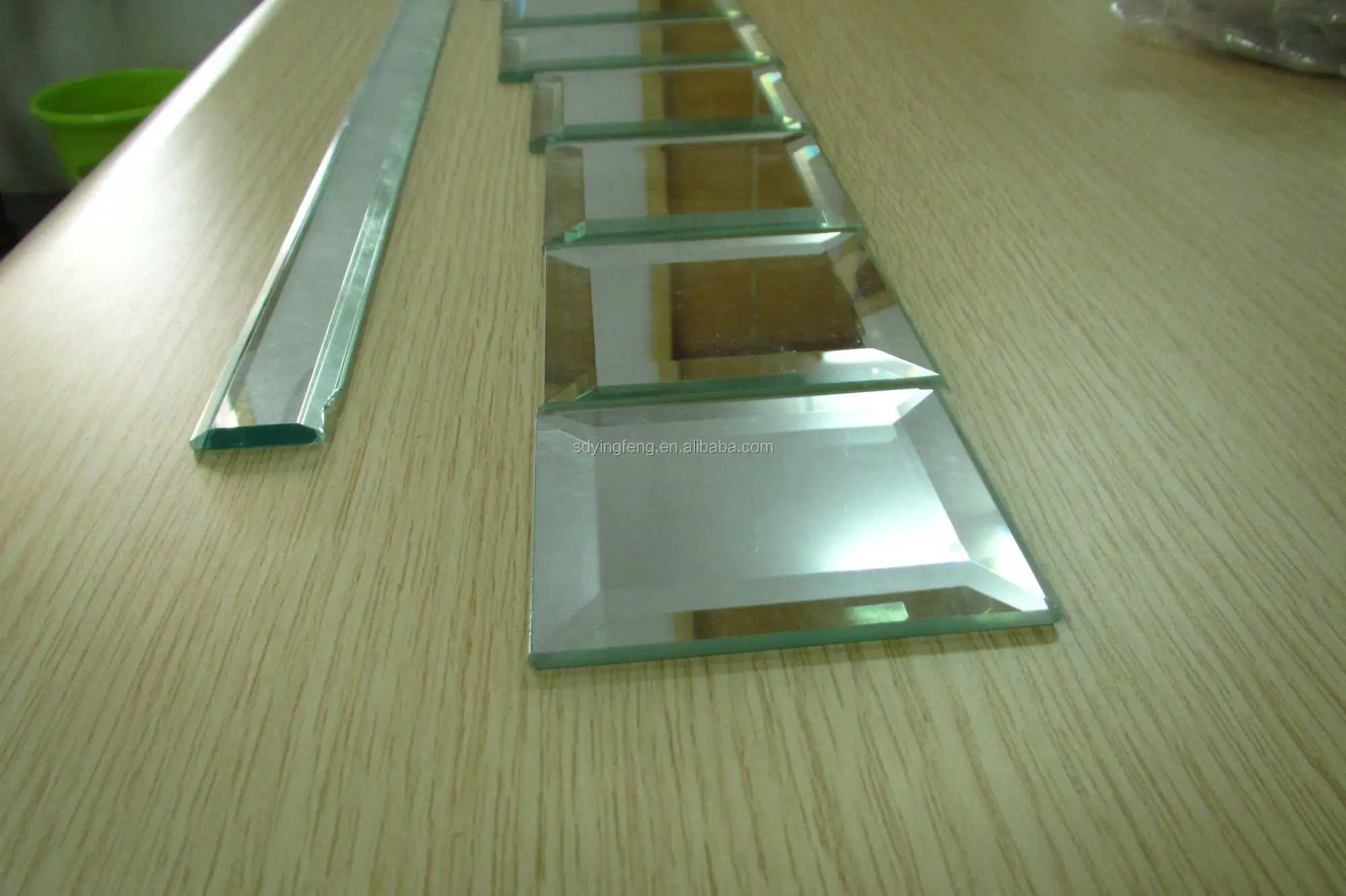

6.It is the best glass grinding equipment for processing glass mosaic ,craft glass ,decoration and furnitue glass ,doors and Windows,bathroom mirror and cosmetic,it is a machine with multi-use.
7.PLC and touch screen is optionally available ,which can automatic control the thickness ,residual thickness and bevel width.

1.Min.size of glass:80x80mm
2.Max.size of glass:2500x2500mm
3.Glass thickness:3-19mm
4.Feeding speed:0.5-5m/min
5.Max.Hypotenuse width:40mm
6.Bevel angle:3-30ᵒ
7.Power:21.5kw
8.Weight:4500kg
9.Dimension:7000x1300x2500mm
10.10 Motors

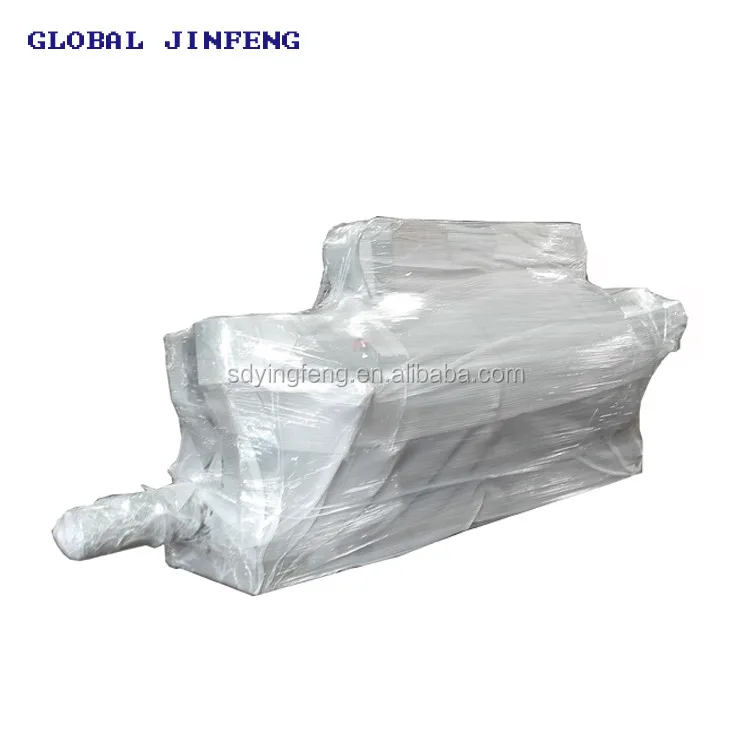

Packing & Delivery
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
